The Rocket Apparatus
Introduction: When Lifeboats Cannot Reach
"A vessel is sometimes wrecked in such a position that a lifeboat cannot render her any assistance. Shoals and reefs and sandbanks may surround the doomed ship so that no boat could approach, and the wreck may be so near the shore that a lifeboat could not float to her. Yet the sea would be raging and beating so violently about her that the men would almost certainly be drowned if no help were afforded them."
This was the problem that rocket apparatus solved. While lifeboats dominated rescue operations for ships offshore, a complementary shore-based system was needed for vessels wrecked close to beaches, caught on reefs, or stranded in positions too shallow or dangerous for boats to reach.
By the 1860s—when Timaru's Alexandra arrived—British coastal stations operated an integrated rescue system combining lifeboats and rocket apparatus. Understanding this system is essential to understanding how Captain Alexander Mills coordinated Timaru's rescue operations from 1867 onward, when the Boxer rocket apparatus joined the Alexandra.
How the Rocket Apparatus Worked
The Basic Principle (Deceptively Simple)
Holmes explains: "Its principle is very simple. It consists of a rocket with a line attached, the rocket being fired over the wrecked ship. The crew then haul on board by means of the line a pulley and a circular or endless rope, by which a thicker rope and hawser can be hauled to them; also a lifebuoy or breeches' buoy, which can then be pulled to and fro with a man clinging to it."
The Equipment:
- The Rocket: "A strong metal cylinder, about one and a half feet long and a couple of inches or so in diameter. Like the rockets of the playground, a stick is attached to it, and for the life-saving rockets the stick is a long one."
- Tripod Stand: Adjustable mounting "to enable the rocket to fall over the wreck"—proper elevation was critical and "a work requiring great skill and judgment."
- Light Line: Attached to the rocket stick, "neatly coiled in a box on the ground." This thin line was carried by the rocket over the wreck.
- Pulley and Endless Rope: Hauled aboard by the crew using the light line. The pulley was "fastened to the mast or some substantial part of the wreck."
- Hawser (Heavy Rope): Thick rope strong enough to support rescue operations in heavy seas, pulled out using the endless rope system.
- Breeches' Buoy: "A large, round lifebuoy with a bag attached, or may be a bag somewhat shaped like a pair of breeches, the rescued person creeping into this bag and being retained there in comparative safety while he is being hauled through the sea."
- Cart: "All the appliances are kept neatly packed in a cart ready for instant use."
The Procedure:
- Assessment: Brigade arrives with cart; coxswain/commander evaluates wind, sea conditions, wreck position
- Setup: Tripod erected, rocket positioned at calculated angle, light line laid out in box

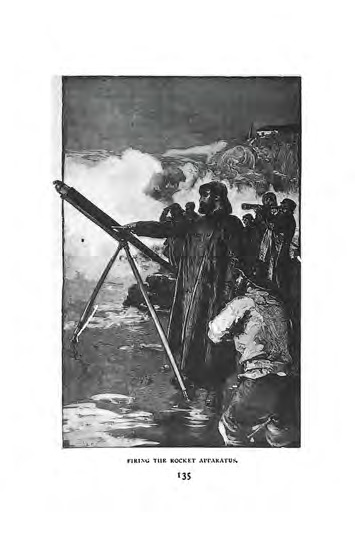

- Firing: "With a flash of flame and a loud whistle, rushes on its journey, leaving a momentary train in the air like a huge serpent or fiery meteor."
- Line Establishment: If successful, "the line falls over the wreck or sufficiently near for the crew to grasp and draw the pulley-rope on board."
- Hawser Setup: Crew fastens pulley to mast; brigade hauls out thicker ropes and hawser
- Rescue: Breeches' buoy attached to hawser, "hauled either way"—crew members climb into buoy one at a time and are pulled through waves to shore
- Efficiency: "Once the communication has been firmly fixed, it is as comparatively easy to rescue a hundred persons as ten."
When to Use Rockets vs. Lifeboats
Rocket Apparatus Advantages:
- Very close to shore: Too shallow for lifeboat to float
- Surrounded by reefs/shoals: Boat cannot navigate safely
- Direct onshore wind: Boat cannot approach against wind/waves
- Stranded on sandbanks: Accessible on foot at low tide
- Large numbers: Once line established, can rescue 100+ as easily as 10
- Crew unable to abandon: Ship not sinking but crew cannot launch boats
- Speed: No need to launch and row—immediate action from shore
Lifeboat Advantages:
- Offshore wrecks: Beyond rocket range (typically 300-400 yards maximum)
- Sinking vessels: Need to take crew off quickly, not one at a time
- Mast gone: Nothing to attach hawser to
- Crew incapacitated: Cannot work lines/buoy themselves
- Vessel breaking up: No time for line establishment
- Tow required: Need to get vessel to safety, not just rescue crew
- Search required: Don't know exact location, must search offshore
Best Practice: Integrated stations had both systems available. Commander (like Captain Mills at Timaru) assessed each situation and deployed appropriate technology—or both sequentially if conditions changed.
History: Multiple Inventors, Gradual Refinement
Like the lifeboat itself, the rocket apparatus emerged from multiple minds working on the same problem:
Sergeant Bell, Royal Artillery: First conceived "the idea of firing a rope from a wreck to a place of safety by means of a mortar and shell."
Captain Manby's Mortar Apparatus: "Introduced an ingenious mortar apparatus, on which the rocket apparatus system is based. The shot had barbs attached to it, which would cling to the rigging or bulwarks of the wreck." Mortar stations established; Manby rewarded in 1814.
Mr. Trengrouse of Helston: Proposed a rocket (rather than mortar) for the same purpose.
Mr. John Dennett, Isle of Wight: "Introduced a rocket apparatus, and in 1826 four places in that island seem to have been furnished with his appliance."
Colonel Boxer and others: "Made improvements, so that in the rocket life-saving apparatus, as in so many other things, several minds have been at work." The "Boxer" rocket apparatus became a standard type—this is what Timaru received in 1867.
Government Standardization: "The rocket apparatus has been under the Board of Trade in conjunction with the Coastguard"—formalized as government service while lifeboats remained voluntary.
Government vs. Voluntary Organization
By the 1860s, Britain operated a hybrid rescue system with different organizational structures:
| Aspect | Rocket Apparatus (Government) | Lifeboats (RNLI/Voluntary) |
|---|---|---|
| Organization | Board of Trade / Coastguard | Royal National Lifeboat Institution |
| Funding | Government budget | Voluntary contributions |
| Stations (1899) | 313 (297 rocket, 8 cliff ladder, 8 heaving-line) | 305 (290 RNLI, 15 local/other) |
| Personnel | Coastguard (professional) + Volunteer Brigades | Volunteer crews with paid coxswains |
| Rewards | Board of Trade grants rewards & medals | RNLI pays service fees & awards medals |
| Equipment | Standardized government issue | RNLI designs & specifications |
Why Two Systems?
The division reflected Victorian pragmatism:
- Rockets suited government: Shore-based, fixed equipment, worked well with coastguard's existing coastal patrol duties
- Lifeboats suited voluntary effort: Required boats, boat houses, carriages, trained crews—substantial local investment and community involvement that voluntary fundraising could mobilize
- Complementary not competitive: Different tools for different situations; stations often had both
- Proved effective: By 1900, the combined system saved 1,000+ lives annually
Volunteer Life Brigades: The Missing Link
The Tynemouth Model (1864)
The wreck of the steamship 'Stanley' on 24 November 1864 at Tynemouth sparked a crucial innovation:
"Numbers were lost by that wreck, close to the shore, chiefly for want of organization among the spectators, and also because they did not know how to work the rocket apparatus."
The Solution: Alderman John Foster Spence organized the first Volunteer Life Brigade—trained civilians who could operate rocket apparatus and coordinate with coastguard.
Key Features:
- Regular drilling and training in rocket operation
- Organization for emergency coordination
- Complete rescue facilities: "Hot baths, berths, blankets, warm clothes, and quite a crockery-ware shop, for the serving of hot food and drink"
- Brigade House with honor roll of vessels saved
- American silver medal for bravery awarded
Growth of Volunteer Brigades: 1864-1899
By 1899, the movement had spread nationwide:
- 217 life-saving companies: 3,768 volunteers total
- 6 brigades: 469 members
- Role: "Work in conjunction with the coastguard, and use the rocket apparatus for saving life"
- Training: Regular drills, annual demonstrations, coordination exercises
- Equipment: Provided by Board of Trade, operated by trained volunteers
Why Brigades Mattered: They solved the organization problem. Coastguard might be few and far from wreck site; local volunteers who knew terrain, could assemble quickly, and had trained together provided the manpower needed for effective rocket operations.
Tynemouth: Epitome of Integrated Rescue
Holmes uses Tynemouth (River Tyne) as his bookend—beginning and ending his narrative there. Why? Because three great advances in British maritime rescue all originated from Tyne disasters:
Three Tyneside Catalysts:
- 1789 – The Adventure: "Gave an impetus to the construction of lifeboats"—launched the entire lifeboat movement
- 1849 – South Shields disaster: 24 pilots drowned in lifeboat capsize, "which led to the building of the self-righting boat"—sparked RNLI's revolutionary design competition
- 1864 – The Stanley: "Leading to the establishment of the first Volunteer Life Brigade"—created organized civilian rocket brigades
"And as we began with the Tyne, so we may end with the same grey, dangerous, busy river. Methods of life-saving work on the coast might almost be said to be epitomised there."
By 1900, Tynemouth had evolved into a model integrated station with:
- Multiple RNLI lifeboats
- Government rocket apparatus stations
- Volunteer Life Brigade with complete facilities
- Harbour improvements ("veritable harbour of refuge")
- Coordinated command structure
This was the model Timaru replicated: Alexandra lifeboat (1863) + Boxer rocket apparatus (1867) + integrated command under Captain Mills = the same proven British system adapted to colonial conditions.
The Integrated System in Action
Holmes emphasizes that the true achievement wasn't individual technologies but systematic integration:
What Integration Meant in Practice:
- Commander with both tools: Single person (like Captain Mills) assessed situation and deployed appropriate technology
- Sequential deployment: Might try rockets first, switch to lifeboat if conditions changed; or vice versa
- Complementary use: Rockets for initial communication/light equipment; lifeboat for evacuation
- Shared crews: Same volunteers might man lifeboat one day, rocket apparatus the next
- Unified training: Brigade members drilled in both systems
- Coordinated alarm: Single signal brought out both services
Results: The combined system saved dramatically more lives than either technology alone. Holmes notes that the RNLI alone saved 1,000+ lives per year by 1900, while rocket apparatus stations saved hundreds more—many rescues involved both systems working together.
Legacy: Victorian Engineering at Its Best
"It is a most wonderful change that has been wrought on our coasts in life-saving work, in little more than a century. There has been marvellous ingenuity to plan the appliances and to organize the services, as well as determined perseverance and splendid bravery in working the boats, the rockets and the lines."
The rocket apparatus represented Victorian problem-solving at its finest:
- Physics applied: Rocket propulsion + line weight calculation + trajectory mathematics = reliable shore-to-ship communication
- Incremental improvement: Sergeant Bell (1791) → Captain Manby (1807) → Trengrouse → Dennett → Boxer → standardization (1855+)
- Technology transfer: British innovations exported worldwide, including Boxer apparatus to Timaru (1867)
- Organizational innovation: Government-voluntary hybrid that leveraged strengths of each sector
- Proven results: 313 stations by 1899, hundreds of lives saved annually
Next: Timaru's Integrated Rescue System
Understanding the British model helps us appreciate what Timaru built between 1863-1885:
- The Alexandra (1863): RNLI-spec lifeboat for offshore rescues
- Boxer rocket apparatus (1867): Government-pattern shore-based system
- Captain Alexander Mills: Integrated commander (Harbourmaster, Lighthouse Keeper, Pilot, Lifeboat Coxswain, Rocket Brigade Commander)
- Volunteer crews: Local men trained in both systems
- Documented rescues: Using lifeboats, rockets, and combined operations
- Black Sunday (1882): Both systems deployed under extreme conditions
Timaru didn't improvise—it adopted and adapted a proven international system.
